Corvette Parts Diagram: Headlight Motor Assembly – 24012 Parts Diagram (1963-1967)
- HEADLIGHTS
- Applies to: 1963–1967 Corvettes

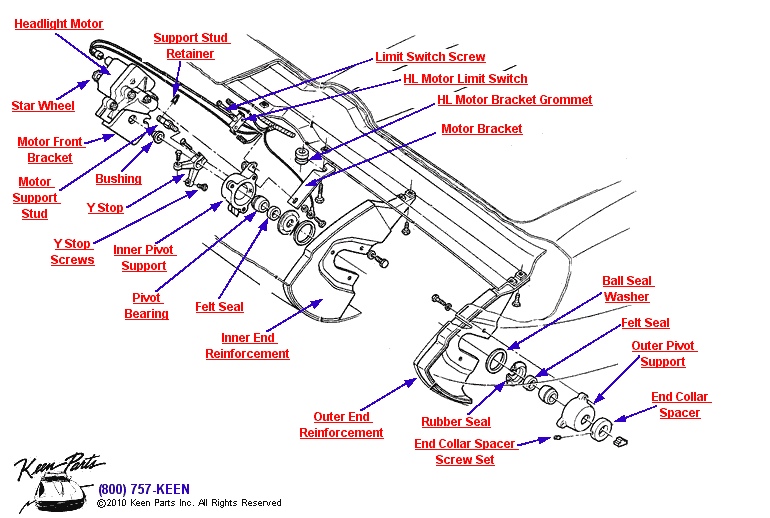

Headlight Motor Assembly – 24012 Parts Diagram (1963-1967)
Ball Seal Washer
View Product
Bushing
View Product
End Collar Spacer
View Product
End Collar Spacer Screw Set
View Product
Felt Seal
View Product
Headlight Motor
View Product
HL Motor Bracket Grommet
View Product
HL Motor Limit Switch
View Product
Inner End Reinforcement
View Product
Inner Pivot Support
View Product
Limit Switch Screw
View Product
Motor Bracket
View Product
Motor Front Bracket
View Product
Motor Support Stud
View Product
Outer End Reinforcement
View Product
Outer Pivot Support
View Product
Pivot Bearing
View Product
Rubber Seal
View Product
Star Wheel
View Product
Support Stud Retainer
View Product
Y Stop
View Product
Y Stop Screws
View Product
View Product
- Ball Seal Washer
- Bushing
- End Collar Spacer
- End Collar Spacer Screw Set
- Felt Seal
- Headlight Motor
- HL Motor Bracket Grommet
- HL Motor Limit Switch
- Inner Pivot Support
- Motor Bracket
- Motor Support Stud
- Outer End Reinforcement
- Outer Pivot Support
- Pivot Bearing
- Rubber Seal
- Star Wheel
- Support Stud Retainer
- Y Stop
- Y Stop Screws
Headlight Motor Assembly – 24012 Parts Diagram (1963-1967) Parts Dropdown
